Details
- •Low-voltage industrial components

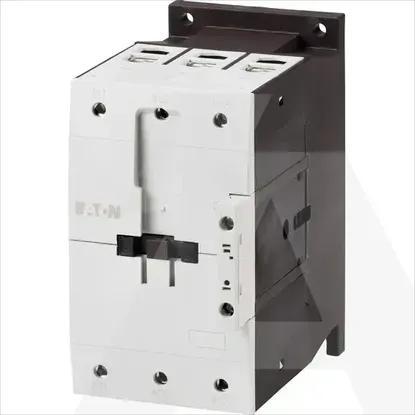

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height170mm
Rated operation power at AC-3, 400 V95kW
Depth160mm
Width90mm
Modular versionNo
Number of normally closed contacts as main contact0
Rated control supply voltage Us at DC0 - 0V
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact0
Operating voltage at AC 60 Hz230 - 690V
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-3, 400 V95A
Rated control supply voltage Us at AC 60HZ100 - 120V
Operating voltage at AC 50 Hz230 - 690V
Rated control supply voltage Us at AC 50HZ100 - 120V
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-1, 400 V110A
Rated operation power NEMA55kW
Rated operation power at AC-4, 400 V26kW
Rated operation current Ie at AC-4, 400 V50A
Voltage type for actuatingAC
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILMF95(RAC120)
