Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
With integrated under voltage releaseNo
Rated voltage900 - 900V
Degree of protection (IP)IP00
Number of auxiliary contacts as normally closed contact0
Position of connection for main current circuitOther
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Rated permanent current Iu30A
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Power loss6.5W
Number of poles3
With switched-off indicatorNo
Integrated earth fault protectionNo
Adjustment range short-term delayed short-circuit release0 - 0A
Suitable for DIN rail (top hat rail) mountingYes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz0kA
Adjustment range undelayed short-circuit release180 - 180A
Type of control elementTurn button
Overload release current setting23 - 30A
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalYes
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

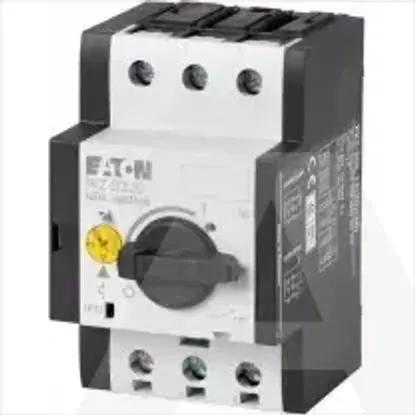

PKZ-SOL30
