Details

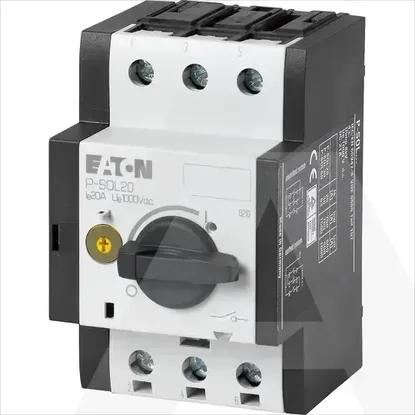

- •Switch-disconnector 1000 V DC, 20 A, 2-pole
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Width58mm
Number of auxiliary contacts as normally open contact0
Depth93mm
Number of auxiliary contacts as normally closed contact0
Height76mm
Rated operation power at AC-3, 400 V0kW
Motor drive integratedNo
InterlockableNo
Type of electrical connection of main circuitClamp bracket
Conditioned rated short-circuit current Iq0kA
Rated operating voltage690 - 690V
Number of switches1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Version as emergency stop installationNo
Version as main switchNo
Type of control elementTurn button
Version as safety switchNo
Rated operation power at AC-23, 400 V0kW
Version as maintenance-/service switchNo
Rated short-time withstand current lcw0.36kA
Colour control elementBlack
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Voltage release optionalYes
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Version as reversing switchNo
Degree of protection (NEMA)Other
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V0A
Switching power at 400 V20kW
Rated permanent current at AC-23, 400 V0A
Motor drive optionalNo
With pre-assembled cablingNo
Suitable for front mounting centreNo
Rated permanent current Iu20A
Number of poles2
Max. rated operation voltage Ue AC1000V
