Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Max. rated operation voltage Ue AC1000V
Version as maintenance-/service switchNo
Version as reversing switchNo
Version as main switchNo
Version as emergency stop installationNo
Number of poles2
Rated operation power at AC-3, 400 V0kW
Number of switches1
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw0.36kA
Rated permanent current at AC-23, 400 V0A
Version as safety switchNo
Switching power at 400 V30kW
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-21, 400 V0A
Rated operation power at AC-23, 400 V0kW
Rated operating voltage690 - 690V
Rated permanent current Iu30A
Conditioned rated short-circuit current Iq0kA
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Voltage release optionalYes
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
InterlockableNo
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for floor mountingYes
Suitable for distribution board installationYes
Type of electrical connection of main circuitClamp bracket
Degree of protection (NEMA)Other
Depth93mm
Height76mm
Width58mm
Suitable for intermediate mountingYes
Type of control elementTurn button
Degree of protection (IP), front sideIP20
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

P-SOL30

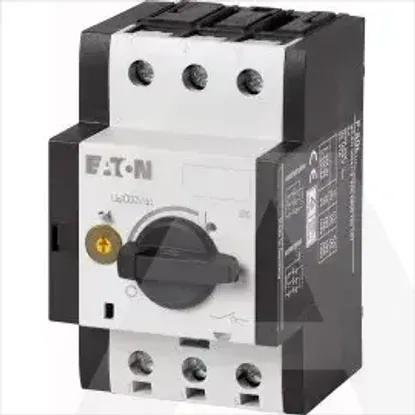

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Max. rated operation voltage Ue AC

1000V

Version as maintenance-/service switch

Version as reversing switch

Version as main switch

Version as emergency stop installation

Number of poles

2

Rated operation power at AC-3, 400 V

0kW

Number of switches

1

Number of auxiliary contacts as normally closed contact

0

Rated short-time withstand current lcw

0.36kA

Rated permanent current at AC-23, 400 V

0A

Version as safety switch

Switching power at 400 V

30kW

Number of auxiliary contacts as normally open contact

0

Rated permanent current at AC-21, 400 V

0A

Rated operation power at AC-23, 400 V

0kW

Rated operating voltage

690 .. 690V

Rated permanent current Iu

30A

Conditioned rated short-circuit current Iq

0kA

Number of auxiliary contacts as change-over contact

0

Suitable for front mounting 4-hole

Motor drive integrated

Voltage release optional

Motor drive optional

Device construction

Built-in device fixed built-in technique

Interlockable

Suitable for front mounting centre

Colour control element

Black

Suitable for floor mounting

Suitable for distribution board installation

Type of electrical connection of main circuit

Clamp bracket

Degree of protection (NEMA)

Other

Depth

93mm

Height

76mm

Width

58mm

Suitable for intermediate mounting

Type of control element

Turn button

Degree of protection (IP), front side

IP20

With pre-assembled cabling
