Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Version as main switchNo
Version as maintenance-/service switchNo
Version as safety switchNo
Version as emergency stop installationNo
Number of switches1
Rated permanent current Iu20A
Rated operating voltage1000 - 1000V
Rated permanent current at AC-23, 400 V0A
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-21, 400 V0A
Rated operation power at AC-3, 400 V0kW
Rated operation power at AC-23, 400 V0kW
Switching power at 400 V20kW
Number of poles2
Conditioned rated short-circuit current Iq0kA
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Suitable for floor mountingYes
Version as reversing switchNo
Voltage release optionalYes
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Colour control elementBlack
Suitable for distribution board installationNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting centreNo
Rated short-time withstand current lcw0.36kA
Type of electrical connection of main circuitOther
Type of control elementToggle
Degree of protection (NEMA)Other
InterlockableNo
Degree of protection (IP), front sideIP65
Depth234mm
With pre-assembled cablingNo
Width100mm
Height130mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

SOL20/2MC4

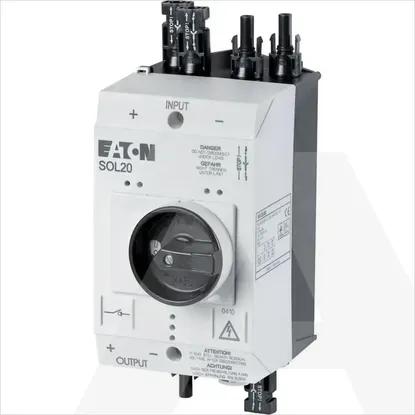

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Version as main switch

Version as maintenance-/service switch

Version as safety switch

Version as emergency stop installation

Number of switches

1

Rated permanent current Iu

20A

Rated operating voltage

1000 .. 1000V

Rated permanent current at AC-23, 400 V

0A

Max. rated operation voltage Ue AC

1000V

Rated permanent current at AC-21, 400 V

0A

Rated operation power at AC-3, 400 V

0kW

Rated operation power at AC-23, 400 V

0kW

Switching power at 400 V

20kW

Number of poles

2

Conditioned rated short-circuit current Iq

0kA

Motor drive optional

Suitable for front mounting 4-hole

Motor drive integrated

Suitable for floor mounting

Version as reversing switch

Voltage release optional

Device construction

Complete device in housing

Suitable for intermediate mounting

Colour control element

Black

Suitable for distribution board installation

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Suitable for front mounting centre

Rated short-time withstand current lcw

0.36kA

Type of electrical connection of main circuit

Other

Type of control element

Toggle

Degree of protection (NEMA)

Other

Interlockable

Degree of protection (IP), front side

IP65

Depth

234mm

With pre-assembled cabling

Width

100mm

Height

130mm
