Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Version as main switchNo
Max. rated operation voltage Ue AC1000V
Rated permanent current Iu20A
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V0kW
Version as safety switchNo
Switching power at 400 V20kW
Number of auxiliary contacts as normally open contact0
Version as reversing switchNo
Rated permanent current at AC-21, 400 V0A
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Rated permanent current at AC-23, 400 V0A
Rated short-time withstand current lcw0.24kA
Number of auxiliary contacts as normally closed contact0
Number of switches1
Number of poles2
Rated operation power at AC-23, 400 V0kW
Conditioned rated short-circuit current Iq0kA
Motor drive optionalNo
Motor drive integratedNo
Suitable for floor mountingYes
Device constructionComplete device in housing
Voltage release optionalYes
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for intermediate mountingNo
Type of control elementToggle
InterlockableNo
With pre-assembled cablingNo
Type of electrical connection of main circuitOther
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)Other
Width100mm
Height130mm
Depth224mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

SOL20/2MV

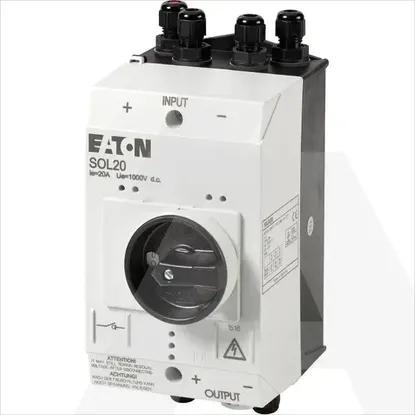

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Version as main switch

Max. rated operation voltage Ue AC

1000V

Rated permanent current Iu

20A

Rated operating voltage

1000 .. 1000V

Rated operation power at AC-3, 400 V

0kW

Version as safety switch

Switching power at 400 V

20kW

Number of auxiliary contacts as normally open contact

0

Version as reversing switch

Rated permanent current at AC-21, 400 V

0A

Version as maintenance-/service switch

Version as emergency stop installation

Number of auxiliary contacts as change-over contact

0

Rated permanent current at AC-23, 400 V

0A

Rated short-time withstand current lcw

0.24kA

Number of auxiliary contacts as normally closed contact

0

Number of switches

1

Number of poles

2

Rated operation power at AC-23, 400 V

0kW

Conditioned rated short-circuit current Iq

0kA

Motor drive optional

Motor drive integrated

Suitable for floor mounting

Device construction

Complete device in housing

Voltage release optional

Suitable for front mounting centre

Suitable for distribution board installation

Suitable for front mounting 4-hole

Colour control element

Black

Suitable for intermediate mounting

Type of control element

Toggle

Interlockable

With pre-assembled cabling

Type of electrical connection of main circuit

Other

Degree of protection (IP), front side

IP65

Degree of protection (NEMA)

Other

Width

100mm

Height

130mm

Depth

224mm

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
