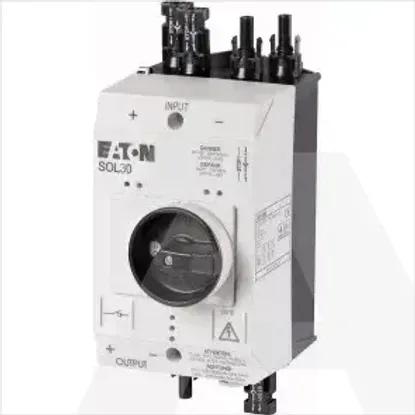

SOL30/2MC4
Code: 1093005
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Max. rated operation voltage Ue AC1000V
Version as main switchNo
Version as maintenance-/service switchNo
Version as safety switchNo
Version as reversing switchNo
Version as emergency stop installationNo
Rated permanent current Iu30A
Rated operating voltage690 - 690V
Rated permanent current at AC-23, 400 V0A
Rated permanent current at AC-21, 400 V0A
Number of switches1
Rated operation power at AC-3, 400 V0kW
Rated operation power at AC-23, 400 V0kW
Rated short-time withstand current lcw0.36kA
Number of auxiliary contacts as normally open contact0
Switching power at 400 V30kW
Conditioned rated short-circuit current Iq0kA
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting 4-holeNo
Voltage release optionalYes
Suitable for floor mountingYes
Motor drive optionalNo
Device constructionComplete device in housing
Motor drive integratedNo
Number of poles2
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Suitable for intermediate mountingNo
InterlockableNo
Colour control elementBlack
Type of control elementToggle
Type of electrical connection of main circuitOther
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)Other
Width100mm
Height130mm
Depth234mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
