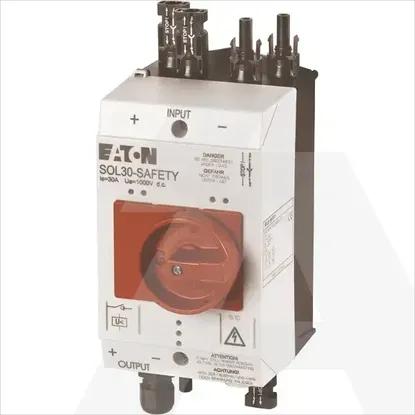

SOL30-SAFETY/2MC4-U(230V50HZ)
Code: 1093010
ManufacturerEaton
Catalog number144122
TypeSOL30-SAFETY/2MC4-U(230V50HZ)
CategorySwitch disconnector
EAN code4015081406326
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0kW
Depth234mm
Number of auxiliary contacts as normally open contact0
Width100mm
Height130mm
InterlockableNo
Suitable for intermediate mountingNo
Rated operating voltage690 - 690V
Number of switches1
Suitable for distribution board installationNo
Type of control elementToggle
Version as emergency stop installationNo
Version as safety switchNo
Conditioned rated short-circuit current Iq0kA
Version as main switchNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V0kW
Motor drive integratedNo
Rated short-time withstand current lcw0.36kA
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Type of electrical connection of main circuitOther
Colour control elementBlack
Number of auxiliary contacts as change-over contact1
Motor drive optionalNo
Degree of protection (IP), front sideIP65
Device constructionComplete device in housing
Voltage release optionalYes
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V30kW
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V0A
Rated permanent current at AC-21, 400 V0A
Rated permanent current Iu32A
Number of poles2
Max. rated operation voltage Ue AC1000V
