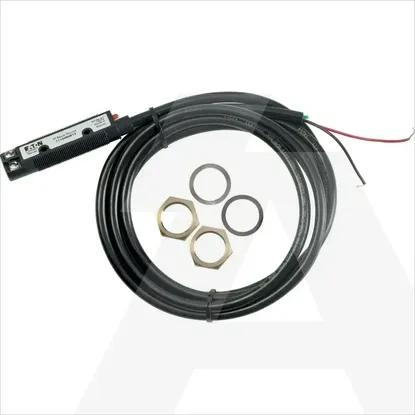

Details
- •Sensors
- •Through beam photoelectric sensor
- •1 KOM
- •EATON
Technical specifications
Max. output current100mA
Voltage typeDC
Suitable for safety functionsNo
Material housingPlastic
Ambient temperature-20 - 70°C
Type of switch functionOther
Switching frequency0Hz
Max. opening angle0°
Type of interface for safety communicationOther
Type of electric connectionCable
Rated control supply voltage Us at AC 60HZ0 - 0V
With time functionNo
Number of protected contact energized outputs0
Operation agent-safety classSafety class 2
Explosion safety category for gasNone
Number of semiconductor outputs with signalling function0
Number of protected semiconductor outputs0
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at AC 50HZ0 - 0V
Setting procedureManual adjustment
Rated control supply voltage Us at DC10 - 30V
Type of switching outputPNP
Min. reflector distance0mm
Switching voltage of OSSD at state "high"0V
Response time7ms
Light dot0mm²
Explosion safety category for dustNone
Max. output current at protected output0mA
With restart blockageNo
Laser protection classNone
Transmission range of the safety field0m
Scope of delivery of the one-way systemTransmitter
Construction type housingCylinder, screw-thread
Type of lightPolarity free red light
With monitoring function downstream switching devicesNo
Width sensor0mm
Material of optical surfacePlastic
Analogue output -10 V ... +10 VNo
Type of safety according to IEC 61496-11
Wavelength of the sensor0nm
Pre failure noticeNo
AWG-number0
Analogue output 4 mA ... 20 mANo
Material of cable sheathPolyurethane (PUR)
Analogue output 0 mA ... 20 mANo
Degree of protection (IP)IP67
Analogue output 0 V ... 10 VNo
With communication interface RS-485No
With communication interface CANOpenNo
With communication interface EthernetNo
With communication interface DeviceNetNo
With communication interface RS-422No
Max. switching distance6000mm
With communication interface PROFIBUSNo
With communication interface analogueNo
With communication interface SSINo
With communication interface INTERBUSNo
With other analogue outputNo
Length of sensor65mm
With communication interface AS-InterfaceNo
With communication interface RS-232No
With communication interface SSDNo
With reflectorNo
Diameter sensor18mm
Height of sensor0mm
Degree of protection (NEMA)1
Rated switching distance6000mm
Sensing modeLight-/dark switching
