Details
- •Sensors

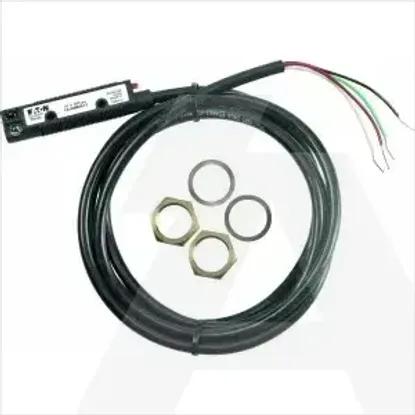

- •Diffuse reflective photoelectric sensor
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Material housingPlastic
Voltage typeDC
Max. output current250mA
Ambient temperature-40 - 70°C
With time functionNo
Number of semiconductor outputs with signalling function2
Switching frequency500Hz
Type of electric connectionCable
Type of interface for safety communicationOther
Number of protected semiconductor outputs0
Number of protected contact energized outputs0
Number of contact energized outputs with signalling function0
Type of switching outputPNP/NPN
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for gasNone
Rated control supply voltage Us at DC10 - 30V
Rated control supply voltage Us at AC 60HZ0 - 0V
Operation agent-safety classSafety class 2
With restart blockageNo
Switching voltage of OSSD at state "high"0V
Transmission range of the safety field0m
With monitoring function downstream switching devicesNo
Laser protection classNone
Light dot0mm²
Type of lightInfrared light
Construction type housingCylinder, screw-thread
Max. output current at protected output0mA
Min. reflector distance0mm
Type of switch functionOther
Explosion safety category for dustNone
Setting procedureManual adjustment
Response time1ms
Material of cable sheathPolyvinyl chloride (PVC)
Wavelength of the sensor0nm
Pre failure noticeNo
Degree of protection (IP)IP67
Material of optical surfacePlastic
Operating distance0 - 0mm
Analogue output 0 mA ... 20 mANo
Analogue output 4 mA ... 20 mANo
Analogue output 0 V ... 10 VNo
AWG-number22
Analogue output -10 V ... +10 VNo
Width sensor0mm
Diameter sensor18mm
Height of sensor0mm
With communication interface AS-InterfaceNo
With communication interface INTERBUSNo
With communication interface DeviceNetNo
With communication interface RS-422No
With communication interface RS-232No
With communication interface EthernetNo
With communication interface CANOpenNo
With communication interface analogueNo
With communication interface PROFIBUSNo
Type of safety according to IEC 61496-11
With communication interface RS-485No
Length of sensor65mm
Degree of protection (NEMA)6
With communication interface SSDNo
Max. switching distance610mm
With reflectorNo
Sensing modeLight-/dark switching
With other analogue outputNo
With communication interface SSINo
