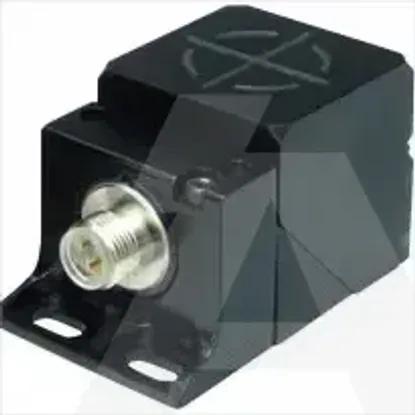

E52Q-DL30UAD01
Code: 1201422
ManufacturerEaton
Catalog number135809
TypeE52Q-DL30UAD01
CategoryInductive proximity switch
EAN code4015081326020
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Material housingPlastic
Voltage typeDC
Coating housingOther
Suitable for safety functionsNo
CascadableNo
Switching frequency100Hz
Number of semiconductor outputs with signalling function1
Type of interface for safety communicationNone
Max. output current at protected output0mA
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of protected semiconductor outputs0
Number of contact energized outputs with signalling function0
Compression-resistantNo
Explosion safety category for gasNone
Type of actuationMetallic Target
Number of protected contact energized outputs0
Type of interfaceNone
Mechanical mounting condition for sensorNot flat
Rated control supply voltage Us at DC6 - 48V
With monitoring function downstream switching devicesNo
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of electric connectionPlug-in connection
Explosion safety category for dustNone
Type of switch functionAnticoincidence
Construction type housingCuboid
Performance level according to EN ISO 13849-1None
Degree of protection (NEMA)4X, 6, 13
SIL according to IEC 61508None
Switching distance30mm
Type of switching outputNPN
Supply voltage6 - 48V
Width sensor40mm
Diameter sensor0mm
Height of sensor40mm
Length of sensor40mm
