Details
- •Sensors

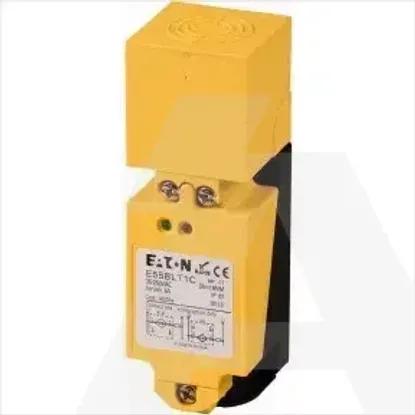

- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
CascadableNo
Material housingPlastic
Suitable for safety functionsNo
Coating housingOther
Number of semiconductor outputs with signalling function1
Construction type housingCuboid
Type of electric connectionClamp
Number of protected semiconductor outputs0
Type of switching output2-wire
Mechanical mounting condition for sensorNot flat
Explosion safety category for dustNone
Type of actuationMetallic Target
Type of switch functionProgrammable/configurable
Switching distance20mm
With monitoring function downstream switching devicesNo
Supply voltage35 - 250V
Number of contact energized outputs with signalling function0
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ35 - 250V
Rated control supply voltage Us at DC0 - 0V
Max. output current at protected output0mA
Switching frequency25Hz
Number of protected contact energized outputs0
Type of interface for safety communicationNone
Rated control supply voltage Us at AC 50HZ35 - 250V
SIL according to IEC 61508None
Length of sensor118mm
Height of sensor40mm
Degree of protection (NEMA)4X, 6, 13
Width sensor40mm
Performance level according to EN ISO 13849-1None
Type of interfaceNone
Diameter sensor0mm
Compression-resistantNo
