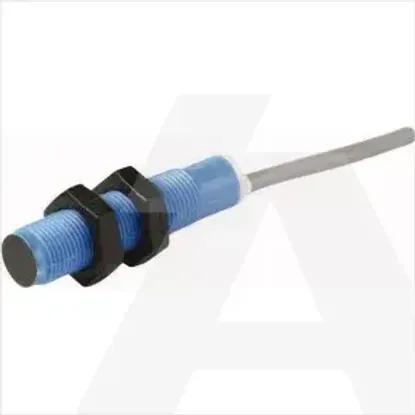

E55CAL12T110
Code: 1201500
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Width sensor0mm
Suitable for safety functionsNo
Type of switch functionNormally open contact
Switching distance2mm
Height of sensor0mm
Type of switching outputNPN
Type of electric connectionCable
Type of actuationMetallic Target
Number of contact energized outputs with signalling function0
Diameter sensor12mm
Number of protected contact energized outputs0
Performance level according to EN ISO 13849-1None
Type of interfaceNone
Number of semiconductor outputs with signalling function1
Supply voltage10 - 30V
Construction type housingCylinder, screw-thread
Coating housingOther
SIL according to IEC 61508None
CascadableNo
Mechanical mounting condition for sensorConcise
Max. output current at protected output0mA
Rated control supply voltage Us at AC 50HZ0 - 0V
Switching frequency2000Hz
With monitoring function downstream switching devicesNo
Number of protected semiconductor outputs0
Length of sensor55mm
Rated control supply voltage Us at AC 60HZ0 - 0V
Material housingPlastic
Compression-resistantNo
Rated control supply voltage Us at DC10 - 30V
Type of interface for safety communicationNone
Explosion safety category for gasNone
Voltage typeDC
Explosion safety category for dustNone
Degree of protection (NEMA)4X, 13
