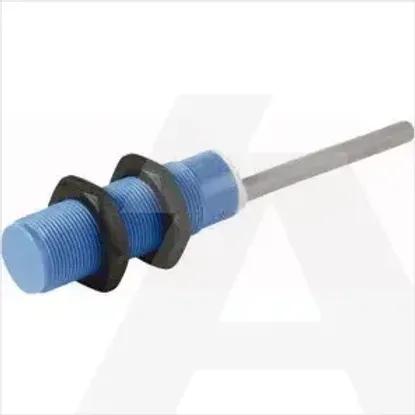

Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Number of semiconductor outputs with signalling function1
Switching distance8mm
CascadableNo
Material housingPlastic
Suitable for safety functionsNo
Switching frequency25Hz
Coating housingOther
Type of electric connectionCable
Number of protected semiconductor outputs0
Rated control supply voltage Us at AC 50HZ20 - 250V
Type of interface for safety communicationNone
Number of contact energized outputs with signalling function0
Type of switching output2-wire
Number of protected contact energized outputs0
Type of switch functionBreaker contact
Rated control supply voltage Us at DC0 - 0V
Rated control supply voltage Us at AC 60HZ20 - 250V
Construction type housingCylinder, screw-thread
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Explosion safety category for dustNone
Type of actuationMetallic Target
Compression-resistantNo
Height of sensor0mm
Supply voltage20 - 250V
Mechanical mounting condition for sensorNot flat
Diameter sensor18mm
Explosion safety category for gasNone
Length of sensor55mm
Width sensor0mm
Type of interfaceNone
Performance level according to EN ISO 13849-1None
Degree of protection (NEMA)4X, 13
SIL according to IEC 61508None
