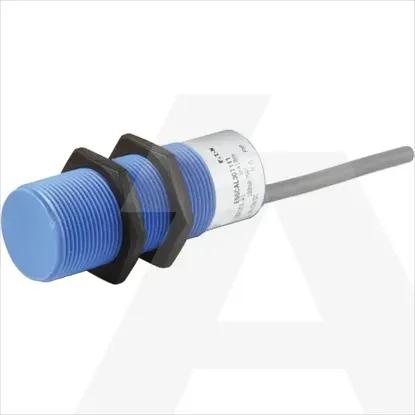

E55CBL30A2
Code: 1201526
ManufacturerEaton
Catalog number135844
TypeE55CBL30A2
CategoryInductive proximity switch
EAN code4015081326372
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Coating housingOther
Number of semiconductor outputs with signalling function1
CascadableNo
Type of switch functionBreaker contact
Material housingPlastic
Number of contact energized outputs with signalling function0
Type of electric connectionCable
Switching frequency25Hz
Type of interface for safety communicationNone
Number of protected semiconductor outputs0
Explosion safety category for gasNone
Rated control supply voltage Us at DC0 - 0V
Explosion safety category for dustNone
Rated control supply voltage Us at AC 60HZ20 - 250V
Voltage typeAC
Number of protected contact energized outputs0
Rated control supply voltage Us at AC 50HZ20 - 250V
Max. output current at protected output0mA
Mechanical mounting condition for sensorConcise
Construction type housingCylinder, screw-thread
With monitoring function downstream switching devicesNo
Type of interfaceNone
Type of actuationMetallic Target
Performance level according to EN ISO 13849-1None
Compression-resistantNo
SIL according to IEC 61508None
Degree of protection (NEMA)4X, 13
Switching distance10mm
Type of switching output2-wire
Supply voltage20 - 250V
Width sensor0mm
Diameter sensor30mm
Height of sensor0mm
Length of sensor80mm
