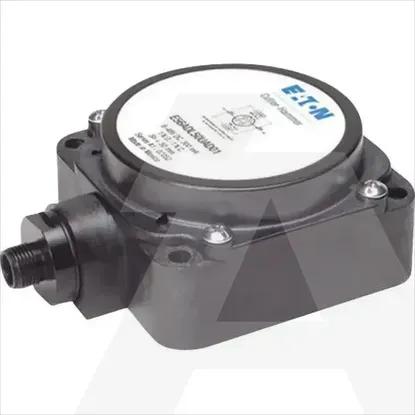

E56ADL40UAD01
Code: 1201533
ManufacturerEaton
Catalog number136235
TypeE56ADL40UAD01
CategoryInductive proximity switch
EAN code4015081330287
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Material housingPlastic
Voltage typeDC
Number of protected semiconductor outputs0
Number of protected contact energized outputs0
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of interface for safety communicationNone
Switching frequency100Hz
Suitable for safety functionsNo
CascadableNo
Type of switch functionAnticoincidence
Rated control supply voltage Us at AC 50HZ0 - 0V
Coating housingOther
Explosion safety category for gasNone
Type of electric connectionPlug-in connection
Number of semiconductor outputs with signalling function1
Rated control supply voltage Us at DC6 - 48V
Explosion safety category for dustNone
With monitoring function downstream switching devicesNo
Construction type housingCuboid
Type of actuationMetallic Target
Compression-resistantNo
Mechanical mounting condition for sensorNot flat
Max. output current at protected output0mA
Type of interfaceNone
SIL according to IEC 61508None
Degree of protection (NEMA)4X, 6, 13
Performance level according to EN ISO 13849-1None
Switching distance40mm
Type of switching outputNPN
Supply voltage6 - 48V
Width sensor79mm
Diameter sensor0mm
Height of sensor39mm
Length of sensor79mm
