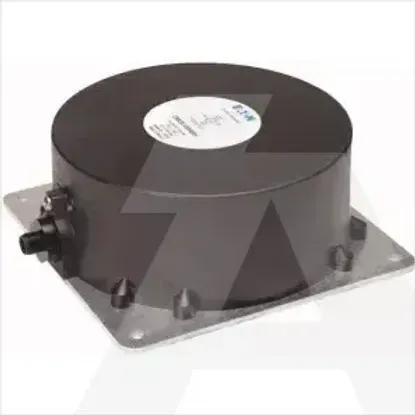

E56CDL100UAD01
Code: 1201535
ManufacturerEaton
Catalog number136237
TypeE56CDL100UAD01
CategoryInductive proximity switch
EAN code4015081330300
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Material housingPlastic
Voltage typeDC
CascadableNo
Number of protected semiconductor outputs0
Number of protected contact energized outputs0
Coating housingOther
Number of semiconductor outputs with signalling function1
Suitable for safety functionsNo
Number of contact energized outputs with signalling function0
Type of electric connectionPlug-in connection
Type of switch functionAnticoincidence
Rated control supply voltage Us at DC6 - 48V
Type of interface for safety communicationNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for gasNone
Switching frequency20Hz
Explosion safety category for dustNone
Type of interfaceNone
Mechanical mounting condition for sensorNot flat
Type of actuationMetallic Target
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Construction type housingCuboid
Performance level according to EN ISO 13849-1None
Compression-resistantNo
SIL according to IEC 61508None
Degree of protection (NEMA)4X, 6, 13
Switching distance100mm
Type of switching outputPNP/NPN
Supply voltage6 - 48V
Width sensor171.5mm
Diameter sensor0mm
Height of sensor67.4mm
Length of sensor171.5mm
