Details
- •Sensors

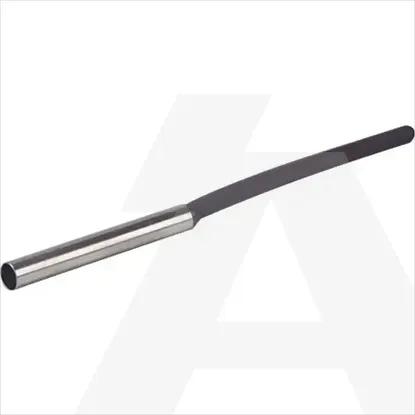

- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Type of interface for safety communicationNone
Switching distance0.8mm
CascadableNo
Number of protected contact energized outputs0
Coating housingOther
Voltage typeDC
Switching frequency2000Hz
Suitable for safety functionsNo
Number of contact energized outputs with signalling function0
Material housingMetal
Number of protected semiconductor outputs0
Number of semiconductor outputs with signalling function1
Type of electric connectionCable
Type of actuationMetallic Target
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC10 - 30V
Compression-resistantNo
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of switch functionNormally open contact
Width sensor0mm
Mechanical mounting condition for sensorConcise
Type of switching outputNPN
With monitoring function downstream switching devicesNo
Explosion safety category for dustNone
Max. output current at protected output0mA
Explosion safety category for gasNone
Supply voltage10 - 30V
Construction type housingCylinder plain
Type of interfaceNone
Performance level according to EN ISO 13849-1None
Height of sensor0mm
SIL according to IEC 61508None
Length of sensor25mm
Degree of protection (NEMA)6P
Diameter sensor4mm
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
E57EAL4T110SP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Type of interface for safety communication
None
Switching distance
0.8mm
Cascadable
Number of protected contact energized outputs
0
Coating housing
Other
Voltage type
DC
Switching frequency
2000Hz
Suitable for safety functions
Number of contact energized outputs with signalling function
0
Material housing
Metal
Number of protected semiconductor outputs
0
Number of semiconductor outputs with signalling function
1
Type of electric connection
Cable
Type of actuation
Metallic Target
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at DC
10 .. 30V
Compression-resistant
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Type of switch function
Normally open contact
Width sensor
0mm
Mechanical mounting condition for sensor
Concise
Type of switching output
NPN
With monitoring function downstream switching devices
Explosion safety category for dust
None
Max. output current at protected output
0mA
Explosion safety category for gas
None
Supply voltage
10 .. 30V
Construction type housing
Cylinder plain
Type of interface
None
Performance level according to EN ISO 13849-1
None
Height of sensor
0mm
SIL according to IEC 61508
None
Length of sensor
25mm
Degree of protection (NEMA)
6P
Diameter sensor
4mm
