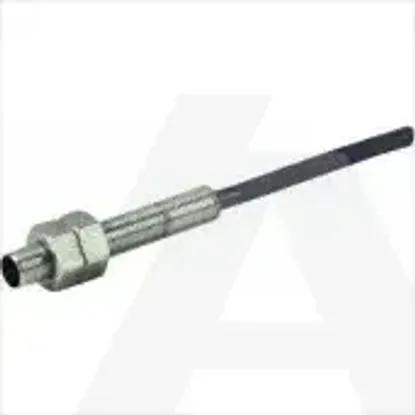

E57EAL5T111SP
Code: 1201684
ManufacturerEaton
Catalog number136241
TypeE57EAL5T111SP
CategoryInductive proximity switch
EAN code4015081330348
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Material housingMetal
Voltage typeDC
Coating housingOther
Switching frequency2000Hz
Suitable for safety functionsNo
Number of semiconductor outputs with signalling function1
Type of interface for safety communicationNone
Number of contact energized outputs with signalling function0
Type of electric connectionCable
Number of protected contact energized outputs0
Number of protected semiconductor outputs0
Explosion safety category for gasNone
Explosion safety category for dustNone
Compression-resistantNo
Rated control supply voltage Us at DC10 - 30V
Type of switch functionNormally open contact
Mechanical mounting condition for sensorConcise
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of actuationMetallic Target
Performance level according to EN ISO 13849-1None
Type of interfaceNone
Construction type housingCylinder, screw-thread
With monitoring function downstream switching devicesNo
Max. output current at protected output0mA
SIL according to IEC 61508None
Degree of protection (NEMA)6P
Switching distance0.8mm
Type of switching outputPNP
Supply voltage10 - 30V
Width sensor0mm
Diameter sensor5mm
Height of sensor0mm
Length of sensor25mm
