Details
- •Sensors

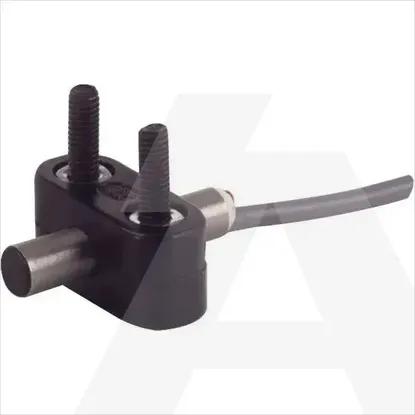

- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Voltage typeDC
Type of interfaceNone
Number of semiconductor outputs with signalling function1
Switching distance1mm
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Type of switching outputPNP
Type of electric connectionCable
Type of switch functionNormally open contact
Construction type housingCylinder plain
Switching frequency2000Hz
Coating housingOther
Number of protected contact energized outputs0
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of actuationMetallic Target
Suitable for safety functionsNo
With monitoring function downstream switching devicesNo
Max. output current at protected output0mA
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of contact energized outputs with signalling function0
Material housingMetal
Rated control supply voltage Us at DC10 - 30V
Explosion safety category for dustNone
Mechanical mounting condition for sensorConcise
Supply voltage10 - 30V
Width sensor0mm
Performance level according to EN ISO 13849-1None
Degree of protection (NEMA)6P
Compression-resistantNo
SIL according to IEC 61508None
Length of sensor45mm
Diameter sensor6mm
Height of sensor0mm
