Details
- •Sensors

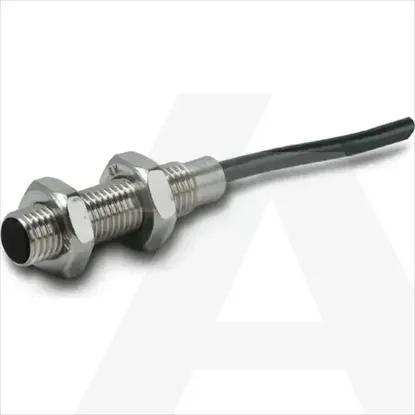

- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Switching frequency2000Hz
Explosion safety category for gasNone
Supply voltage10 - 30V
Type of interface for safety communicationNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Explosion safety category for dustNone
Material housingMetal
Coating housingOther
Suitable for safety functionsNo
Construction type housingCylinder, screw-thread
Number of protected semiconductor outputs0
With monitoring function downstream switching devicesNo
Number of semiconductor outputs with signalling function1
CascadableNo
Number of contact energized outputs with signalling function0
Type of switching outputPNP
Type of switch functionNormally open contact
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of protected contact energized outputs0
Switching distance2mm
Mechanical mounting condition for sensorNot flat
Type of electric connectionCable
Max. output current at protected output0mA
Rated control supply voltage Us at DC10 - 30V
Type of actuationMetallic Target
Length of sensor30mm
Performance level according to EN ISO 13849-1None
Degree of protection (NEMA)6P
SIL according to IEC 61508None
Height of sensor0mm
Type of interfaceNone
Width sensor0mm
Diameter sensor8mm
Compression-resistantNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
E57EAL8T111EP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Voltage type
DC
Switching frequency
2000Hz
Explosion safety category for gas
None
Supply voltage
10 .. 30V
Type of interface for safety communication
None
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Explosion safety category for dust
None
Material housing
Metal
Coating housing
Other
Suitable for safety functions
Construction type housing
Cylinder, screw-thread
Number of protected semiconductor outputs
0
With monitoring function downstream switching devices
Number of semiconductor outputs with signalling function
1
Cascadable
Number of contact energized outputs with signalling function
0
Type of switching output
PNP
Type of switch function
Normally open contact
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Number of protected contact energized outputs
0
Switching distance
2mm
Mechanical mounting condition for sensor
Not flat
Type of electric connection
Cable
Max. output current at protected output
0mA
Rated control supply voltage Us at DC
10 .. 30V
Type of actuation
Metallic Target
Length of sensor
30mm
Performance level according to EN ISO 13849-1
None
Degree of protection (NEMA)
6P
SIL according to IEC 61508
None
Height of sensor
0mm
Type of interface
None
Width sensor
0mm
Diameter sensor
8mm
Compression-resistant
