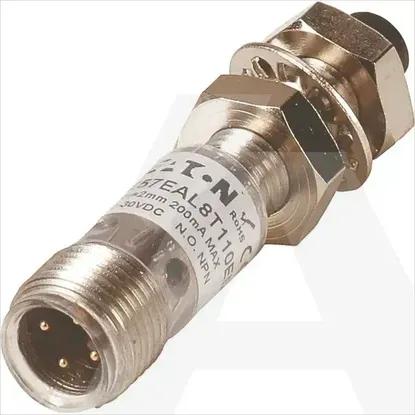

E57EBL8T110ED
Code: 1201697
ManufacturerEaton
Catalog number136254
TypeE57EBL8T110ED
CategoryInductive proximity switch
EAN code4015081330478
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Voltage typeDC
Material housingMetal
Number of protected contact energized outputs0
Suitable for safety functionsNo
Number of semiconductor outputs with signalling function1
Type of switch functionBreaker contact
Coating housingOther
Explosion safety category for dustNone
Type of interface for safety communicationNone
Number of contact energized outputs with signalling function0
Type of electric connectionConnector M12
Rated control supply voltage Us at DC10 - 30V
Rated control supply voltage Us at AC 60HZ0 - 0V
Mechanical mounting condition for sensorNot flat
Explosion safety category for gasNone
With monitoring function downstream switching devicesNo
Max. output current at protected output0mA
Construction type housingCylinder, screw-thread
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of protected semiconductor outputs0
Switching frequency2000Hz
Type of interfaceNone
Type of actuationMetallic Target
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Compression-resistantNo
Degree of protection (NEMA)6P
Switching distance2mm
Type of switching outputNPN
Supply voltage10 - 30V
Width sensor0mm
Diameter sensor8mm
Height of sensor0mm
Length of sensor70mm
