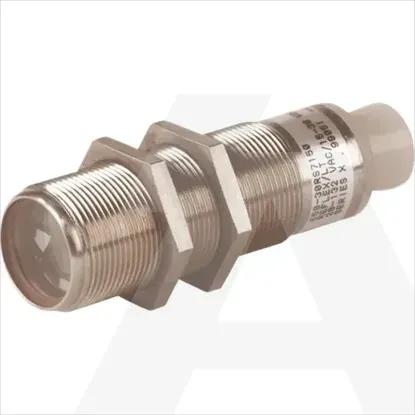

Details
- •Sensors
- •Light scanner with background masking
- •1 KOM
- •EATON
Technical specifications
Material housingMetal
Max. output current100mA
Switching frequency312Hz
Voltage typeDC
Adjustment range0 - 150mm
Suitable for safety functionsNo
With time functionNo
Ambient temperature-40 - 55°C
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of switching outputPNP/NPN
Rated control supply voltage Us at DC10 - 30V
Type of switch functionOther
Number of semiconductor outputs with signalling function2
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of protected contact energized outputs0
Number of contact energized outputs with signalling function0
Type of electric connectionConnector M12
Type of interface for safety communicationOther
Number of protected semiconductor outputs0
With monitoring function downstream switching devicesNo
Type of lightOther
Switching voltage of OSSD at state "high"30V
Operation agent-safety classSafety class 2
Min. reflector distance0mm
Explosion safety category for gasNone
Transmission range of the safety field0m
Max. output current at protected output0mA
Wavelength of the sensor660nm
Light dot0mm²
Setting procedureOther
Operating distance0 - 0mm
Material of cable sheathOther
Material of optical surfaceGlass
Laser protection classNone
Explosion safety category for dustNone
Type of safety according to IEC 61496-11
With restart blockageNo
Response time1.6ms
Construction type housingCylinder, screw-thread
Analogue output 0 mA ... 20 mANo
Analogue output -10 V ... +10 VNo
Analogue output 0 V ... 10 VNo
Degree of protection (IP)IP68
Pre failure noticeNo
Diameter sensor30mm
With communication interface RS-232No
With communication interface PROFIBUSNo
With communication interface CANOpenNo
Width sensor0mm
With communication interface EthernetNo
Analogue output 4 mA ... 20 mANo
Height of sensor0mm
With communication interface INTERBUSNo
With communication interface analogueNo
With communication interface DeviceNetNo
AWG-number0
With communication interface AS-InterfaceNo
Degree of protection (NEMA)6
Sensing modeLight switching
Length of sensor111mm
Max. switching distance165mm
With communication interface RS-422No
With other analogue outputNo
Rated switching distance150mm
With communication interface RS-485No
With communication interface SSDNo
TriangulationBackground fade-out
With communication interface SSINo
With reflectorNo
