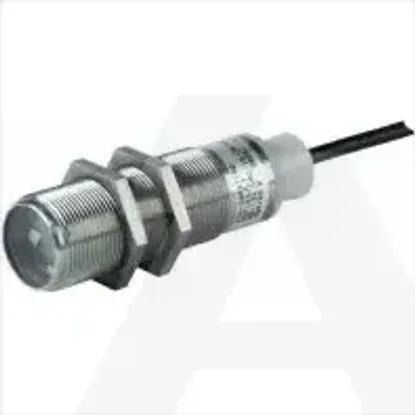

Details
- •Sensors
- •Light scanner with background masking
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Material housingMetal
Max. output current100mA
Type of interface for safety communicationOther
Type of switch functionOther
Suitable for safety functionsNo
Adjustment range0 - 280mm
Number of semiconductor outputs with signalling function2
Type of switching outputPNP/NPN
Switching frequency312Hz
Type of electric connectionCable
Number of contact energized outputs with signalling function0
With time functionNo
Ambient temperature-40 - 55°C
Number of protected contact energized outputs0
Number of protected semiconductor outputs0
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Setting procedureOther
Construction type housingCylinder, screw-thread
Rated control supply voltage Us at DC10 - 30V
Min. reflector distance0mm
With monitoring function downstream switching devicesNo
Laser protection classNone
Type of lightOther
Explosion safety category for gasNone
Operation agent-safety classSafety class 2
Max. output current at protected output0mA
With restart blockageNo
Material of optical surfaceGlass
Switching voltage of OSSD at state "high"30V
Degree of protection (IP)IP68
Analogue output 0 V ... 10 VNo
Response time1.6ms
Wavelength of the sensor660nm
Operating distance0 - 0mm
Analogue output 0 mA ... 20 mANo
Material of cable sheathPolyvinyl chloride (PVC)
Transmission range of the safety field0m
Type of safety according to IEC 61496-11
Light dot0mm²
Pre failure noticeNo
Explosion safety category for dustNone
With communication interface CANOpenNo
AWG-number22
With communication interface INTERBUSNo
Diameter sensor30mm
Analogue output -10 V ... +10 VNo
Height of sensor0mm
Analogue output 4 mA ... 20 mANo
Width sensor0mm
With communication interface AS-InterfaceNo
With communication interface analogueNo
With communication interface DeviceNetNo
Length of sensor111mm
With communication interface PROFIBUSNo
Sensing modeLight switching
With communication interface RS-422No
Rated switching distance280mm
With other analogue outputNo
With communication interface RS-485No
With communication interface SSDNo
With communication interface SSINo
With reflectorNo
TriangulationBackground fade-out
With communication interface EthernetNo
With communication interface RS-232No
Max. switching distance318mm
Degree of protection (NEMA)6
