Details
- •Sensors

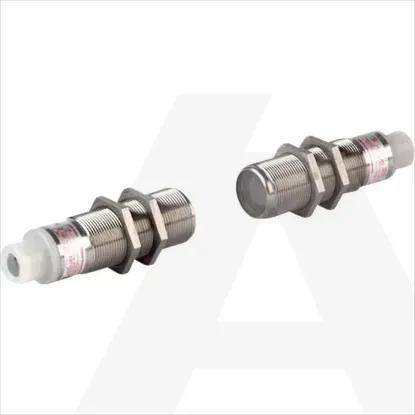

- •Through beam photoelectric sensor
- •1 KOM
- •EATON
Technical specifications
Material housingMetal
Max. output current100mA
Voltage typeDC
Suitable for safety functionsNo
Switching frequency312Hz
Number of protected semiconductor outputs0
Type of switch functionOther
Max. opening angle0°
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of semiconductor outputs with signalling function2
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of electric connectionConnector M12
Rated control supply voltage Us at DC10 - 30V
Type of interface for safety communicationOther
With time functionNo
Number of contact energized outputs with signalling function0
Number of protected contact energized outputs0
Type of switching outputPNP
Explosion safety category for gasNone
Setting procedureOther
Ambient temperature-40 - 55°C
Operation agent-safety classSafety class 2
Explosion safety category for dustNone
Max. output current at protected output0mA
Construction type housingCylinder, screw-thread
Light dot0mm²
Scope of delivery of the one-way systemReceiver
Laser protection classNone
Min. reflector distance0mm
With monitoring function downstream switching devicesNo
Response time1ms
Type of safety according to IEC 61496-11
Material of optical surfaceGlass
Material of cable sheathPolyvinyl chloride (PVC)
Analogue output 0 V ... 10 VNo
Degree of protection (IP)IP68
Switching voltage of OSSD at state "high"30V
Pre failure noticeNo
With restart blockageNo
Analogue output -10 V ... +10 VNo
Wavelength of the sensor0nm
Analogue output 0 mA ... 20 mANo
Transmission range of the safety field0m
Diameter sensor30mm
Analogue output 4 mA ... 20 mANo
Type of lightOther
AWG-number0
Width sensor0mm
With communication interface SSDNo
With communication interface RS-422No
With communication interface analogueNo
With communication interface DeviceNetNo
With communication interface AS-InterfaceNo
Length of sensor111mm
Height of sensor0mm
With communication interface SSINo
With communication interface EthernetNo
With communication interface INTERBUSNo
With communication interface RS-232No
With communication interface RS-485No
With communication interface PROFIBUSNo
With reflectorNo
Sensing modeLight switching
With other analogue outputNo
Max. switching distance0mm
Rated switching distance250000mm
With communication interface CANOpenNo
Degree of protection (NEMA)6P
