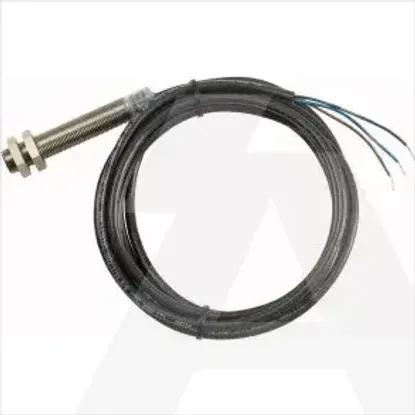

E59-M12A105C02-D1
Code: 1201963
ManufacturerEaton
Catalog number136205
TypeE59-M12A105C02-D1
CategoryInductive proximity switch
EAN code4015081329984
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Coating housingOther
Suitable for safety functionsNo
Material housingMetal
CascadableNo
Number of contact energized outputs with signalling function0
Number of protected contact energized outputs0
Type of electric connectionCable
Switching frequency580Hz
Construction type housingCylinder, screw-thread
Type of interface for safety communicationNone
Type of switch functionNormally open contact
Number of protected semiconductor outputs0
Voltage typeDC
Explosion safety category for gasNone
Number of semiconductor outputs with signalling function1
Rated control supply voltage Us at DC6 - 48V
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
Max. output current at protected output0mA
Mechanical mounting condition for sensorConcise
With monitoring function downstream switching devicesNo
Explosion safety category for dustNone
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Type of interfaceNone
Type of actuationMetallic Target
Compression-resistantNo
Degree of protection (NEMA)4X, 6, 13
Switching distance4mm
Type of switching outputNPN
Supply voltage6 - 48V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor62mm
