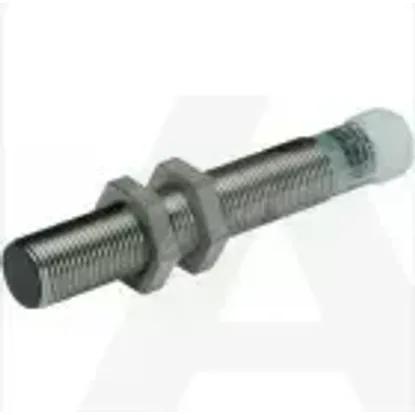

E59-M12A105D01-D2
Code: 1201966
ManufacturerEaton
Catalog number136208
TypeE59-M12A105D01-D2
CategoryInductive proximity switch
EAN code4015081330010
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Number of protected contact energized outputs0
Suitable for safety functionsNo
Voltage typeDC
Number of semiconductor outputs with signalling function1
Coating housingOther
Number of protected semiconductor outputs0
Switching frequency580Hz
Type of interface for safety communicationNone
Number of contact energized outputs with signalling function0
Material housingMetal
Construction type housingCylinder, screw-thread
Type of interfaceNone
Degree of protection (NEMA)4X, 6, 13
SIL according to IEC 61508None
Type of electric connectionConnector M12
Max. output current at protected output0mA
Type of actuationMetallic Target
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC6 - 48V
Compression-resistantNo
Mechanical mounting condition for sensorConcise
With monitoring function downstream switching devicesNo
Type of switch functionBreaker contact
Explosion safety category for dustNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Performance level according to EN ISO 13849-1None
Explosion safety category for gasNone
Switching distance4mm
Type of switching outputNPN
Supply voltage6 - 48V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor69mm
