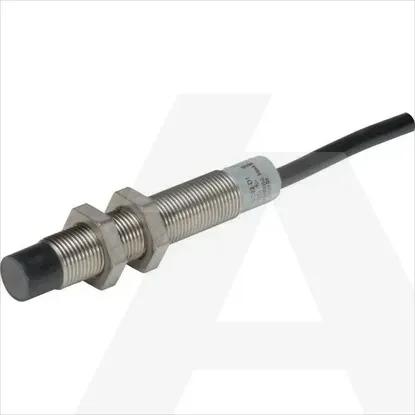

E59-M12C110C02-D1
Code: 1201967
ManufacturerEaton
Catalog number136209
TypeE59-M12C110C02-D1
CategoryInductive proximity switch
EAN code4015081330027
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Number of semiconductor outputs with signalling function1
Suitable for safety functionsNo
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs0
Voltage typeDC
Switching frequency300Hz
Type of electric connectionCable
Type of interface for safety communicationNone
Number of protected contact energized outputs0
Material housingMetal
Coating housingOther
CascadableNo
Degree of protection (NEMA)4X, 6, 13
Compression-resistantNo
Construction type housingCylinder, screw-thread
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Rated control supply voltage Us at AC 50HZ0 - 0V
SIL according to IEC 61508None
Explosion safety category for dustNone
Type of switch functionNormally open contact
Performance level according to EN ISO 13849-1None
Mechanical mounting condition for sensorNot flat
Type of actuationMetallic Target
Rated control supply voltage Us at DC6 - 48V
Rated control supply voltage Us at AC 60HZ0 - 0V
Explosion safety category for gasNone
Type of interfaceNone
Switching distance10mm
Type of switching outputNPN
Supply voltage6 - 48V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor62mm
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
E59-M12C110C02-D1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Number of semiconductor outputs with signalling function
1
Suitable for safety functions
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Voltage type
DC
Switching frequency
300Hz
Type of electric connection
Cable
Type of interface for safety communication
None
Number of protected contact energized outputs
0
Material housing
Metal
Coating housing
Other
Cascadable
Degree of protection (NEMA)
4X, 6, 13
Compression-resistant
Construction type housing
Cylinder, screw-thread
Max. output current at protected output
0mA
With monitoring function downstream switching devices
Rated control supply voltage Us at AC 50HZ
0 .. 0V
SIL according to IEC 61508
None
Explosion safety category for dust
None
Type of switch function
Normally open contact
Performance level according to EN ISO 13849-1
None
Mechanical mounting condition for sensor
Not flat
Type of actuation
Metallic Target
Rated control supply voltage Us at DC
6 .. 48V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Explosion safety category for gas
None
Type of interface
None
Switching distance
10mm
Type of switching output
NPN
Supply voltage
6 .. 48V
Width sensor
0mm
Diameter sensor
12mm
Height of sensor
0mm
Length of sensor
62mm
