E59-M12C110D01-D2
Code: 1201970
ManufacturerEaton
Catalog number136212
TypeE59-M12C110D01-D2

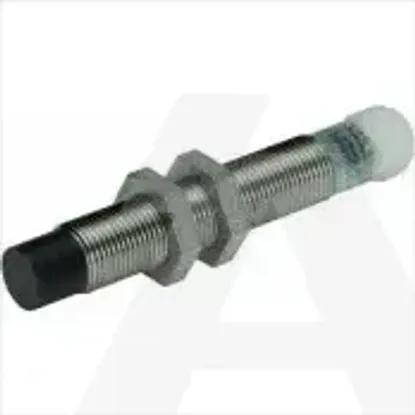

CategoryInductive proximity switch
EAN code4015081330058
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Material housingMetal
Suitable for safety functionsNo
CascadableNo
Voltage typeDC
Coating housingOther
Number of protected contact energized outputs0
Type of interface for safety communicationNone
Type of electric connectionConnector M12
Construction type housingCylinder, screw-thread
Number of protected semiconductor outputs0
Explosion safety category for dustNone
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of switch functionBreaker contact
Number of contact energized outputs with signalling function0
Number of semiconductor outputs with signalling function1
Rated control supply voltage Us at DC6 - 48V
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Switching frequency300Hz
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Type of interfaceNone
SIL according to IEC 61508None
Mechanical mounting condition for sensorNot flat
Type of actuationMetallic Target
Performance level according to EN ISO 13849-1None
Compression-resistantNo
Degree of protection (NEMA)4X, 6, 13
Switching distance10mm
Type of switching outputPNP
Supply voltage6 - 48V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor69mm
