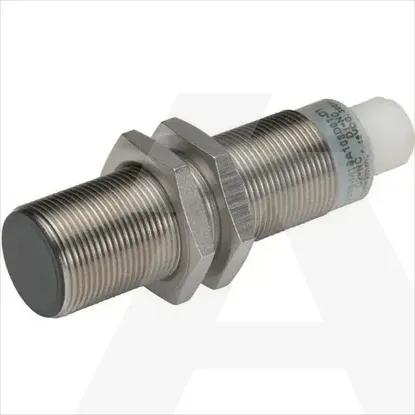

E59-M18A108D01-D2
Code: 1201974
ManufacturerEaton
Catalog number136216
TypeE59-M18A108D01-D2
CategoryInductive proximity switch
EAN code4015081330096
Details
- •Inductive proximity sensor base device 1nc c
- •Sensors
- •Inductive proximity switch
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Voltage typeDC
Material housingMetal
CascadableNo
Coating housingOther
Number of contact energized outputs with signalling function0
With monitoring function downstream switching devicesNo
Explosion safety category for gasNone
Type of actuationMetallic Target
Type of interfaceNone
Switching frequency390Hz
Number of protected contact energized outputs0
Type of switch functionBreaker contact
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of protected semiconductor outputs0
Type of electric connectionConnector M12
Max. output current at protected output0mA
Explosion safety category for dustNone
Rated control supply voltage Us at DC6 - 48V
Mechanical mounting condition for sensorConcise
Rated control supply voltage Us at AC 60HZ0 - 0V
Construction type housingCylinder, screw-thread
Number of semiconductor outputs with signalling function1
Suitable for safety functionsNo
Type of interface for safety communicationNone
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Compression-resistantNo
Degree of protection (NEMA)4X, 6, 13
Switching distance8mm
Type of switching outputPNP/NPN
Supply voltage6 - 48V
Width sensor0mm
Diameter sensor18mm
Height of sensor0mm
Length of sensor69mm
