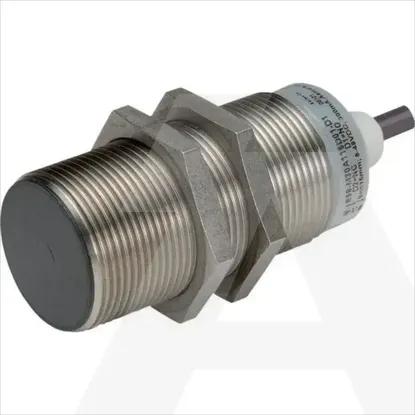

E59-M30A115C02-D1
Code: 1201979
ManufacturerEaton
Catalog number136221
TypeE59-M30A115C02-D1
CategoryInductive proximity switch
EAN code4015081330140
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Type of electric connectionCable
Number of protected contact energized outputs0
Suitable for safety functionsNo
Type of interface for safety communicationNone
Voltage typeDC
Construction type housingCylinder, screw-thread
Max. output current at protected output0mA
CascadableNo
Number of semiconductor outputs with signalling function1
Explosion safety category for dustNone
Switching frequency240Hz
Mechanical mounting condition for sensorConcise
Explosion safety category for gasNone
Coating housingOther
Type of switch functionNormally open contact
Number of protected semiconductor outputs0
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
With monitoring function downstream switching devicesNo
Number of contact energized outputs with signalling function0
Material housingMetal
Rated control supply voltage Us at DC6 - 48V
Compression-resistantNo
Type of interfaceNone
SIL according to IEC 61508None
Degree of protection (NEMA)4X, 6, 13
Performance level according to EN ISO 13849-1None
Type of actuationMetallic Target
Switching distance15mm
Type of switching outputPNP
Supply voltage6 - 48V
Width sensor0mm
Diameter sensor30mm
Height of sensor0mm
Length of sensor70mm
