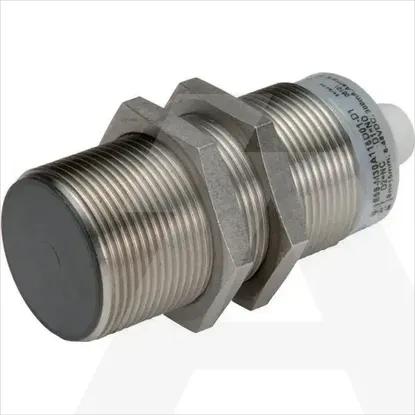

E59-M30A115D01-D2
Code: 1201982
ManufacturerEaton
Catalog number136224
TypeE59-M30A115D01-D2
CategoryInductive proximity switch
EAN code4015081330171
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Coating housingOther
Number of semiconductor outputs with signalling function1
Voltage typeDC
CascadableNo
Switching frequency240Hz
Number of protected contact energized outputs0
Number of contact energized outputs with signalling function0
Material housingMetal
Number of protected semiconductor outputs0
Explosion safety category for gasNone
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of interface for safety communicationNone
Type of electric connectionConnector M12
Explosion safety category for dustNone
Type of actuationMetallic Target
Compression-resistantNo
Mechanical mounting condition for sensorConcise
Type of interfaceNone
Type of switch functionBreaker contact
Construction type housingCylinder, screw-thread
Rated control supply voltage Us at AC 60HZ0 - 0V
Max. output current at protected output0mA
Rated control supply voltage Us at DC6 - 48V
With monitoring function downstream switching devicesNo
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Degree of protection (NEMA)4X, 6, 13
Switching distance15mm
Type of switching outputNPN
Supply voltage6 - 48V
Width sensor0mm
Diameter sensor30mm
Height of sensor0mm
Length of sensor74mm
