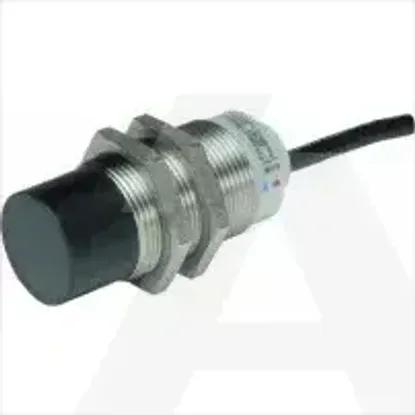

Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Coating housingOther
Type of switching outputPNP
Voltage typeDC
Number of contact energized outputs with signalling function0
Type of interface for safety communicationNone
Material housingMetal
Number of protected semiconductor outputs0
Suitable for safety functionsNo
Number of semiconductor outputs with signalling function1
Number of protected contact energized outputs0
Switching distance29mm
Type of switch functionNormally open contact
Type of electric connectionCable
CascadableNo
Switching frequency145Hz
Explosion safety category for gasNone
Rated control supply voltage Us at DC6 - 48V
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Mechanical mounting condition for sensorNot flat
Supply voltage6 - 48V
Type of actuationMetallic Target
Explosion safety category for dustNone
Max. output current at protected output0mA
Width sensor0mm
With monitoring function downstream switching devicesNo
Construction type housingCylinder, screw-thread
Compression-resistantNo
Type of interfaceNone
Height of sensor0mm
Diameter sensor30mm
Length of sensor70mm
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Degree of protection (NEMA)4X, 6, 13
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
E59-M30C129C02-D1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Coating housing
Other
Type of switching output
PNP
Voltage type
DC
Number of contact energized outputs with signalling function
0
Type of interface for safety communication
None
Material housing
Metal
Number of protected semiconductor outputs
0
Suitable for safety functions
Number of semiconductor outputs with signalling function
1
Number of protected contact energized outputs
0
Switching distance
29mm
Type of switch function
Normally open contact
Type of electric connection
Cable
Cascadable
Switching frequency
145Hz
Explosion safety category for gas
None
Rated control supply voltage Us at DC
6 .. 48V
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Mechanical mounting condition for sensor
Not flat
Supply voltage
6 .. 48V
Type of actuation
Metallic Target
Explosion safety category for dust
None
Max. output current at protected output
0mA
Width sensor
0mm
With monitoring function downstream switching devices
Construction type housing
Cylinder, screw-thread
Compression-resistant
Type of interface
None
Height of sensor
0mm
Diameter sensor
30mm
Length of sensor
70mm
Performance level according to EN ISO 13849-1
None
SIL according to IEC 61508
None
Degree of protection (NEMA)
4X, 6, 13
