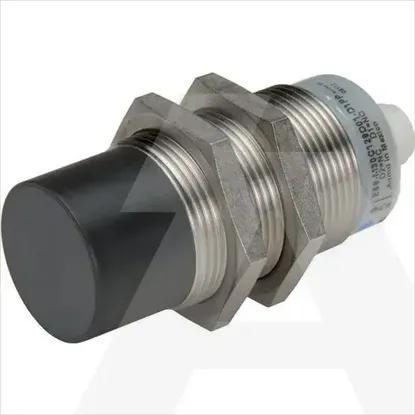

E59-M30C129D01-D1
Code: 1201985
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Height of sensor0mm
Width sensor0mm
Diameter sensor30mm
Length of sensor74mm
Type of switch functionNormally open contact
Suitable for safety functionsNo
Switching distance29mm
Type of electric connectionConnector M12
Number of semiconductor outputs with signalling function1
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Type of switching outputNPN
Number of contact energized outputs with signalling function0
Type of interfaceNone
Construction type housingCylinder, screw-thread
CascadableNo
Number of protected contact energized outputs0
SIL according to IEC 61508None
Mechanical mounting condition for sensorNot flat
Performance level according to EN ISO 13849-1None
Supply voltage6 - 48V
Max. output current at protected output0mA
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC6 - 48V
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of actuationMetallic Target
Voltage typeDC
Material housingMetal
Explosion safety category for dustNone
Coating housingOther
Explosion safety category for gasNone
Degree of protection (NEMA)4X, 6, 13
Compression-resistantNo
Switching frequency145Hz
With monitoring function downstream switching devicesNo
