Details
- •Sensors

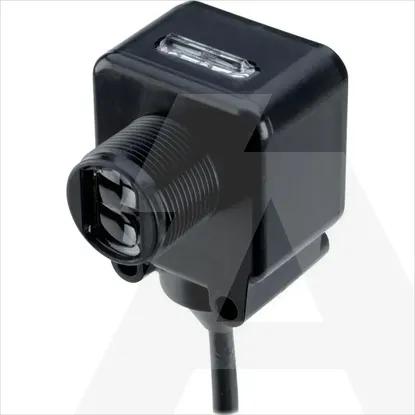

- •Light scanner with background masking
- •1 KOM
- •EATON
Technical specifications
Material housingPlastic
Voltage typeDC
Suitable for safety functionsNo
Max. output current100mA
Adjustment range0 - 50mm
With time functionNo
Switching frequency500Hz
Ambient temperature-25 - 55°C
Number of semiconductor outputs with signalling function1
Number of protected contact energized outputs0
Number of protected semiconductor outputs0
Type of electric connectionCable
Type of interface for safety communicationOther
Number of contact energized outputs with signalling function0
Explosion safety category for dustNone
Construction type housingCuboid
Rated control supply voltage Us at DC10 - 30V
Operation agent-safety classSafety class 2
Setting procedureOther
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for gasNone
Max. output current at protected output0mA
Min. reflector distance0mm
Laser protection classNone
Type of switch functionOther
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of lightOther
Light dot0mm²
Type of switching outputNPN
With monitoring function downstream switching devicesNo
With restart blockageNo
Switching voltage of OSSD at state "high"30V
Pre failure noticeNo
Degree of protection (IP)IP68
Wavelength of the sensor660nm
Transmission range of the safety field0m
Material of cable sheathPolyvinyl chloride (PVC)
Type of safety according to IEC 61496-11
Material of optical surfacePlastic
Operating distance0 - 0mm
Analogue output 0 V ... 10 VNo
With communication interface analogueNo
Analogue output -10 V ... +10 VNo
With communication interface CANOpenNo
Height of sensor43mm
AWG-number22
With communication interface AS-InterfaceNo
Width sensor33mm
Response time1ms
With communication interface EthernetNo
Diameter sensor0mm
Analogue output 4 mA ... 20 mANo
Analogue output 0 mA ... 20 mANo
With communication interface INTERBUSNo
With communication interface DeviceNetNo
With communication interface RS-232No
Max. switching distance50mm
With reflectorNo
Rated switching distance50mm
With communication interface RS-422No
With communication interface PROFIBUSNo
Sensing modeDark switching
Length of sensor41mm
With communication interface RS-485No
With communication interface SSDNo
With other analogue outputNo
Degree of protection (NEMA)6
With communication interface SSINo
TriangulationBackground fade-out
