Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width190mm
Height80mm
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V0kW
Width in number of modular spacings6
Number of poles4
InterlockableNo
Depth220mm
Rated permanent current Iu125A
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq50kA
Number of switches1
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Rated short-time withstand current lcw2.5kA
Version as emergency stop installationNo
Version as main switchYes
Suitable for floor mountingYes
Type of control elementShort thumb-grip
Colour control elementOther
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V30kW
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Suitable for intermediate mountingYes
Version as reversing switchNo
Rated permanent current at AC-23, 400 V66A
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V0kW
Voltage release optionalNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V125A
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

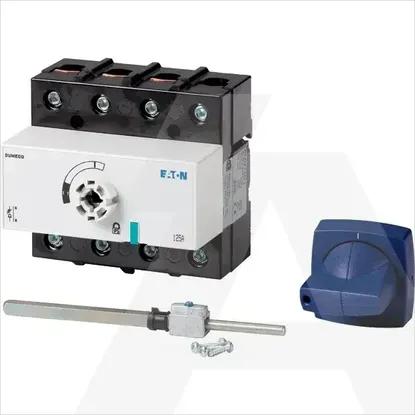

DMM-125/1+CM
