Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Depth152mm
Width132mm
Number of auxiliary contacts as normally open contact0
Height108mm
Width in number of modular spacings6
Degree of protection (IP), front sideIP20
Rated permanent current Iu125A
Number of poles4
Conditioned rated short-circuit current Iq50kA
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Version as main switchYes
Version as maintenance-/service switchYes
Number of switches1
InterlockableNo
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Suitable for distribution board installationYes
Suitable for floor mountingYes
Suitable for front mounting centreNo
Switching power at 400 V0kW
Max. rated operation voltage Ue AC690V
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V66A
With pre-assembled cablingNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V30kW
Rated short-time withstand current lcw2.5kA
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V125A
Version as reversing switchNo
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

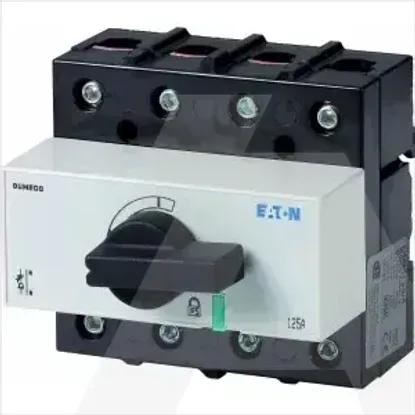

DMM-125/4
