Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth152mm
Width132mm
Height108mm
Rated operation power at AC-3, 400 V0kW
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Type of control elementShort thumb-grip
Number of switches1
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Version as safety switchNo
Degree of protection (IP), front sideIP20
InterlockableNo
Motor drive integratedNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw2.5kA
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu125A
Colour control elementOther
Width in number of modular spacings6
Conditioned rated short-circuit current Iq50kA
Number of poles4
Rated operating voltage690 - 690V
Version as main switchYes
Rated permanent current at AC-23, 400 V66A
Degree of protection (NEMA)Other
Version as reversing switchNo
Suitable for intermediate mountingYes
With pre-assembled cablingNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V125A
Switching power at 400 V0kW
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

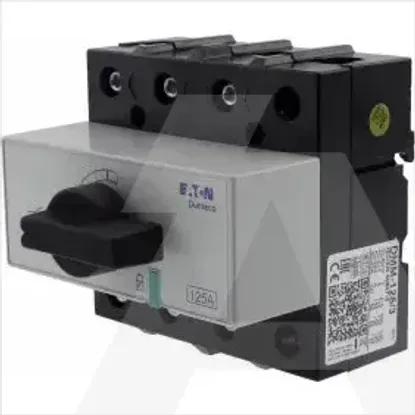

DMM-125/4+CM
