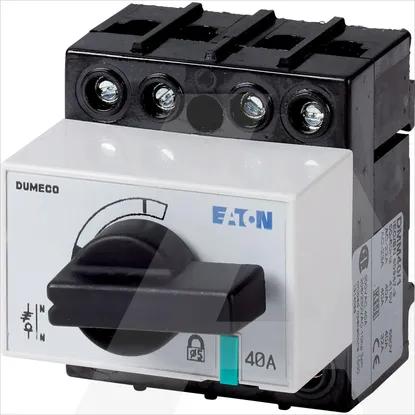

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Height74mm
Width84mm
Rated permanent current Iu40A
Depth146mm
Number of poles4
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Width in number of modular spacings4
Conditioned rated short-circuit current Iq100kA
InterlockableNo
Degree of protection (IP), front sideIP20
Type of control elementShort thumb-grip
Number of auxiliary contacts as change-over contact0
Number of switches1
Rated operation power at AC-23, 400 V22kW
Colour control elementBlack
Rated short-time withstand current lcw1kA
Version as maintenance-/service switchYes
Version as safety switchNo
Version as main switchYes
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Motor drive optionalNo
Version as reversing switchNo
Voltage release optionalNo
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V40A
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V40A
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DMM-40/1
