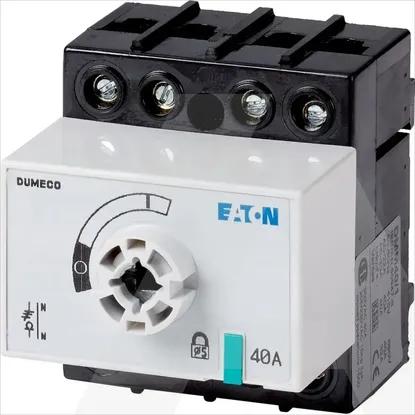

DMM-40/1-SK
Code: 1202201
ManufacturerEaton
Catalog number1314052
TypeDMM-40/1-SK
CategorySwitch disconnector
EAN code8711426322110
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width84mm
Number of auxiliary contacts as normally closed contact0
Depth146mm
Width in number of modular spacings4
Number of auxiliary contacts as normally open contact0
Height74mm
Rated operation power at AC-3, 400 V0kW
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq100kA
Degree of protection (IP), front sideIP20
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Suitable for distribution board installationYes
Version as main switchYes
Device constructionBuilt-in device fixed built-in technique
Version as emergency stop installationNo
Colour control elementOther
Rated permanent current at AC-21, 400 V40A
Type of control elementOther
Voltage release optionalNo
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Switching power at 400 V0kW
Suitable for intermediate mountingNo
Number of switches1
Version as safety switchNo
InterlockableNo
Rated short-time withstand current lcw1kA
Motor drive optionalNo
Rated operation power at AC-23, 400 V22kW
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V40A
Degree of protection (NEMA)Other
Rated permanent current Iu40A
Number of poles4
Max. rated operation voltage Ue AC690V
