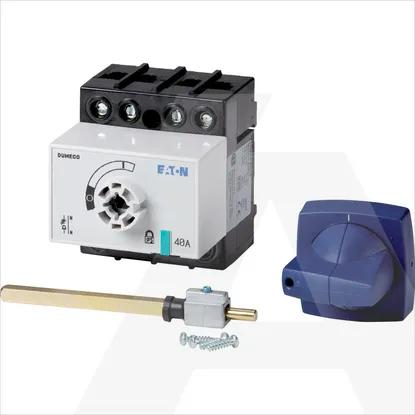

DMM-40/4+SK
Code: 1202203
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of switches1
Version as main switchYes
Version as reversing switchNo
Version as safety switchNo
Version as emergency stop installationNo
Rated permanent current at AC-23, 400 V40A
Rated operation power at AC-3, 400 V0kW
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated permanent current Iu40A
Rated permanent current at AC-21, 400 V40A
Motor drive integratedNo
Switching power at 400 V0kW
Suitable for front mounting centreNo
Number of auxiliary contacts as normally closed contact0
Number of poles4
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq100kA
Rated operation power at AC-23, 400 V22kW
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated short-time withstand current lcw1kA
Voltage release optionalNo
InterlockableNo
Degree of protection (IP), front sideIP20
Type of control elementShort thumb-grip
Width in number of modular spacings4
Colour control elementOther
Suitable for intermediate mountingNo
Height74mm
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Width84mm
Type of electrical connection of main circuitScrew connection
Depth146mm
