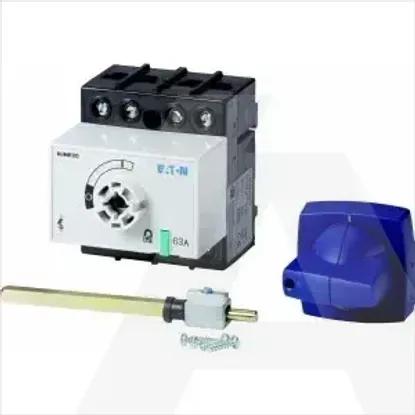

DMM-63/1+SK
Code: 1202206
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Rated permanent current Iu63A
Version as maintenance-/service switchYes
Number of switches1
Version as emergency stop installationNo
Max. rated operation voltage Ue AC690V
Rated operation power at AC-3, 400 V0kW
Rated operation power at AC-23, 400 V30kW
Version as safety switchNo
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V63A
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Version as reversing switchNo
Rated permanent current at AC-23, 400 V63A
Number of auxiliary contacts as normally open contact0
Device constructionBuilt-in device fixed built-in technique
Rated short-time withstand current lcw1.5kA
Switching power at 400 V0kW
Colour control elementOther
Suitable for front mounting centreNo
Conditioned rated short-circuit current Iq100kA
Type of control elementShort thumb-grip
Voltage release optionalNo
Number of poles4
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP20
Motor drive integratedNo
Suitable for floor mountingYes
InterlockableNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Type of electrical connection of main circuitScrew connection
Height80mm
Depth150mm
Width in number of modular spacings4
Width90mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
