Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width in number of modular spacings4
Width84mm
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq100kA
Height74mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu63A
Number of poles4
Rated operation power at AC-3, 400 V0kW
Depth146mm
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Motor drive integratedNo
Number of switches1
InterlockableNo
Version as safety switchNo
Version as main switchYes
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Rated short-time withstand current lcw1.5kA
Colour control elementOther
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V30kW
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V63A
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Motor drive optionalNo
Switching power at 400 V0kW
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

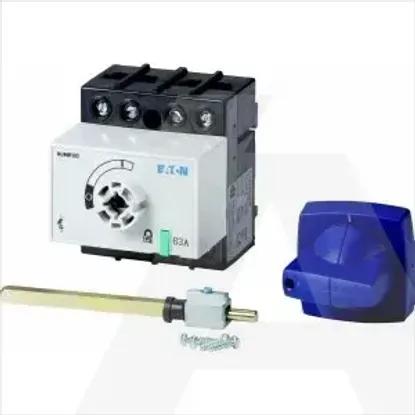

DMM-63/4+SK
