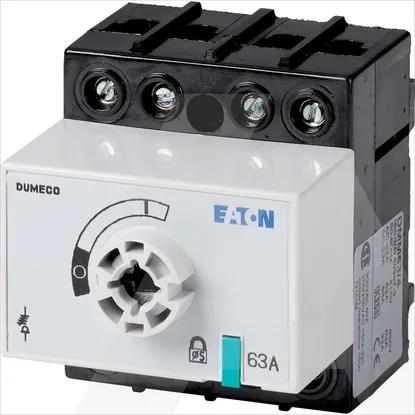

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Depth150mm
Rated permanent current Iu63A
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq100kA
Rated operation power at AC-3, 400 V0kW
Height80mm
Number of auxiliary contacts as normally closed contact0
Width90mm
Width in number of modular spacings4
Degree of protection (IP), front sideIP20
Number of poles4
Colour control elementOther
Version as emergency stop installationNo
Number of switches1
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V30kW
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
Suitable for distribution board installationYes
Rated short-time withstand current lcw1.5kA
Version as maintenance-/service switchYes
Version as main switchYes
Version as safety switchNo
Type of control elementOther
Number of auxiliary contacts as change-over contact0
InterlockableNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V63A
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V0kW
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V63A
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
