Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height250mm
Depth400mm
Rated operation power at AC-3, 400 V0kW
Width250mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu1000A
Conditioned rated short-circuit current Iq100kA
Number of poles4
Rated operating voltage690 - 690V
Number of switches1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
InterlockableNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw36kA
Suitable for front mounting centreNo
Colour control elementOther
Type of control elementOther
Version as emergency stop installationYes
Version as maintenance-/service switchYes
Motor drive integratedNo
Version as safety switchNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V425kW
Version as main switchYes
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V375kW
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V1000A
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V759A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

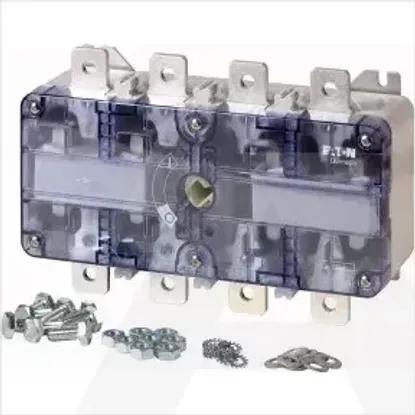

DMV-1000N/4
