Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width250mm
Depth500mm
Number of poles3
Height250mm
Rated operation power at AC-3, 400 V0kW
Rated permanent current Iu1600A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V750kW
Conditioned rated short-circuit current Iq0kA
Type of control elementOther
Colour control elementOther
Degree of protection (IP), front sideIP20
Version as main switchYes
Rated short-time withstand current lcw50kA
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
InterlockableNo
Version as maintenance-/service switchYes
Number of switches1
Motor drive integratedNo
Version as emergency stop installationYes
Suitable for intermediate mountingNo
Suitable for floor mountingYes
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V1600A
Version as reversing switchNo
Switching power at 400 V710kW
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V1250A
Suitable for distribution board installationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

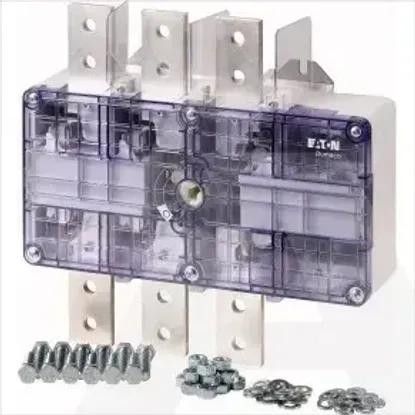

DMV-1600N/3
