Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth386mm
Height115mm
Width362mm
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq0kA
Number of poles4
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V0kW
Degree of protection (IP), front sideIP20
Rated permanent current Iu1600A
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Version as main switchYes
Version as safety switchNo
Type of control elementOther
Number of switches1
Number of auxiliary contacts as change-over contact0
InterlockableNo
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw50kA
Rated operation power at AC-23, 400 V750kW
Colour control elementOther
Motor drive optionalNo
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Switching power at 400 V710kW
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V1600A
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V1250A
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

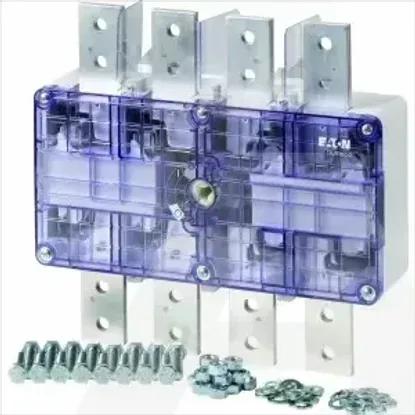

DMV-1600N/4
