Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Depth180mm
Width210mm
Height80mm
Number of poles3
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu160A
Conditioned rated short-circuit current Iq100kA
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP20
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
InterlockableNo
Number of switches1
Type of control elementOther
Version as emergency stop installationYes
Rated short-time withstand current lcw8kA
Version as safety switchNo
Version as maintenance-/service switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V90kW
Suitable for front mounting centreNo
Voltage release optionalNo
Colour control elementOther
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Rated permanent current at AC-21, 400 V160A
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V154A
Version as reversing switchNo
Switching power at 400 V90kW
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

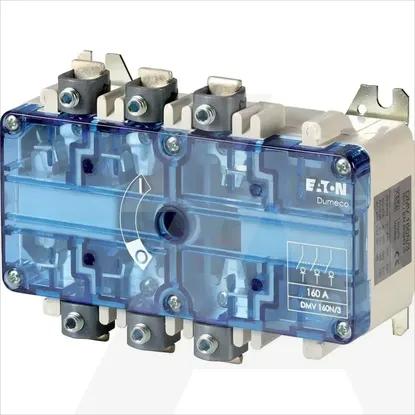

DMV-160N/3+TC
