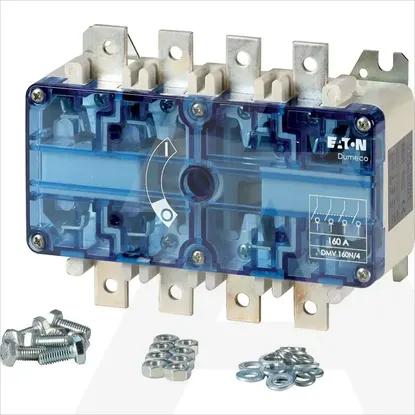

DMV-160N/4
Code: 1202231
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Version as safety switchNo
Version as main switchYes
Version as emergency stop installationYes
Version as reversing switchNo
Rated permanent current at AC-23, 400 V154A
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V160A
Rated short-time withstand current lcw8kA
Rated permanent current Iu160A
Switching power at 400 V90kW
Rated operating voltage690 - 690V
Number of poles4
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq100kA
Rated operation power at AC-23, 400 V90kW
Number of switches1
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Motor drive integratedNo
Motor drive optionalNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Colour control elementOther
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Type of control elementOther
Degree of protection (NEMA)Other
InterlockableNo
Degree of protection (IP), front sideIP20
Height150mm
Width150mm
Depth250mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
