Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width130mm
Height70mm
Rated operation power at AC-3, 400 V0kW
Depth170mm
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
Conditioned rated short-circuit current Iq100kA
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu160A
Type of control elementOther
Rated short-time withstand current lcw8kA
InterlockableNo
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP20
Rated operation power at AC-23, 400 V90kW
Colour control elementOther
Rated operating voltage690 - 690V
Number of poles4
Motor drive integratedNo
Number of switches1
Version as main switchYes
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationYes
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V160A
Voltage release optionalNo
Version as reversing switchNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V154A
Switching power at 400 V90kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

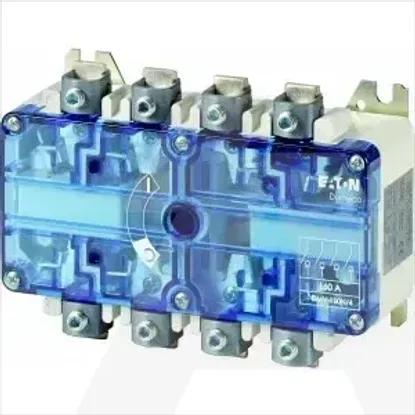

DMV-160N/4+TC
